Inverting Voltage Amplifier

Purpose:

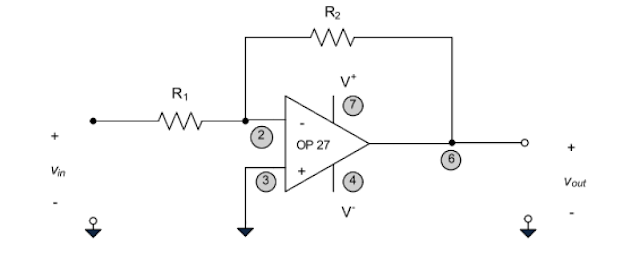

Pre-lab: Based on the circuit constructed below:

We changed the value of Vin from -3V to 4V with the increment of 0.5V, and find Vout. Since this is an inverting voltage amplifier, we have value voltages from -3V to 3V symmetrical with. Vout on the left column is Vout eperimental, and on the right column is Vout theoretical.

When it reaches saturation, we will not get the Vout experimental the same as Vout theoretical. Vcc+ and Vcc- are controlling the max value of V output in Op-amp.

Here are pictures of out circuit.

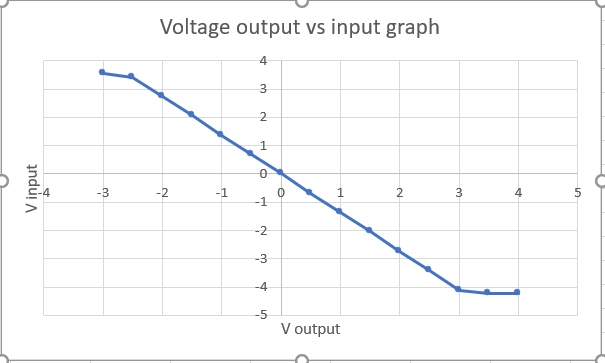

Graph of Vout vs Vin

In this graph also represents exactly the saturation and linear region as we discussed in class.
